Horizon Queue Manager in rConfig V8 Core

Laravel Horizon is the queue manager behind rConfig V8 Core. After reading this page, you can understand how Horizon processes background jobs, monitor queues from the dashboard, configure Supervisor and environment variables, and troubleshoot common queue problems.

Most rConfig backend work runs through Laravel’s jobs and queues system, so operations execute in the background rather than blocking the web interface. Horizon runs as a persistent process managed by Supervisor and provides a web dashboard for real-time visibility into job throughput, execution status, and queue health.

Tune the queue with care

The queueing system is powerful and can download hundreds of devices at once using parallel processing. Some changes are detrimental if the server lacks the resources to support them. Open a support ticket with rConfig before adjusting queue settings on a production system.

What Horizon does

Horizon manages the background execution of rConfig operations. The main responsibilities are:

• Asynchronous job processing: runs time-consuming operations in the background so the web interface stays responsive and multiple tasks process concurrently.
• Queue management: organises jobs into prioritised queues so critical operations (manual downloads, high-priority tasks) process before lower-priority work.
• Worker supervision: monitors worker processes and restarts failed workers to keep processing capacity consistent.
• Performance monitoring: reports job throughput, execution times, failure rates, and queue depths in real time.
• Batch processing: groups related jobs into batches so a single job failure does not block an entire operation. A scheduled task is sent as a batch, then delivered to queues as individual per-device jobs.
• Failed job handling: captures failed jobs with error details, stack traces, and retry actions.

Without Horizon running, none of these operations execute, which makes it critical to rConfig automation.

Queue architecture

rConfig V8 Core uses several specialised queues, processed in First In First Out (FIFO) order. Higher-priority queues are serviced before lower-priority ones, so interactive user actions (such as a manual download) complete ahead of routine scheduled work.

Queue	Priority	Timeout	Purpose
HighPriorityQueue	1 (highest)	4 hrs	Critical jobs requiring immediate processing
ManualDownloadQueue	2	4 hrs	Manual device configuration downloads triggered by users
TaskDownloadQueue	3	4 hrs	Scheduled task configuration downloads
TaskSnippetQueue	4	4 hrs	Snippet deployment jobs (Pro and above)
PolicyCompliance	5	4 hrs	Policy compliance checks (Pro and above)
SnmpTrapQueue	6	4 hrs	SNMP trap processing
PurgeDataJobs	7	4 hrs	Data cleanup and purge operations
rConfigDefault	8	4 hrs	General system jobs (backups, emails, maintenance)
default	9 (lowest)	A few seconds	Fallback queue, not actively used

Some queues are edition-gated

The TaskSnippetQueue and PolicyCompliance queues exist in the queue configuration for all editions, but snippet deployment and policy compliance are features of the Pro, Enterprise, and Vector editions. See the rConfig Pro and Enterprise documentation for those capabilities. In V8 Core these queues stay idle.

How batches work

From rConfig V6, all device download jobs are sent as batches. Before batches, a scheduled task ran as a single job, so one failure or delay affected the whole operation. With batches:

• Each device becomes an individual job within the batch.
• An individual job failure does not block the other jobs.
• Per-device job status makes troubleshooting easier.
• Execution is non-blocking and runs in parallel.
• Horizon shows detailed batch status and progress.

How rConfig uses the queues

• Device backups: configuration downloads run as queued jobs in TaskDownloadQueue (scheduled) or ManualDownloadQueue (manual), so multiple devices back up concurrently.
• Scheduled tasks: scheduled operations queue through the appropriate queue based on task type.
• System maintenance: backup cleanup, log archival, and purge operations run in PurgeDataJobs and rConfigDefault.

Accessing the Horizon dashboard

Open the dashboard from External Tools → System Queue Manager, or browse directly to:

https://your-rconfig-domain.com/horizon

Access is restricted to users with the admin role.

Note

The Horizon dashboard exposes code-driven configuration for the Redis-backed queues and lets you monitor key metrics such as job throughput, runtime, and failures.

Dashboard sections

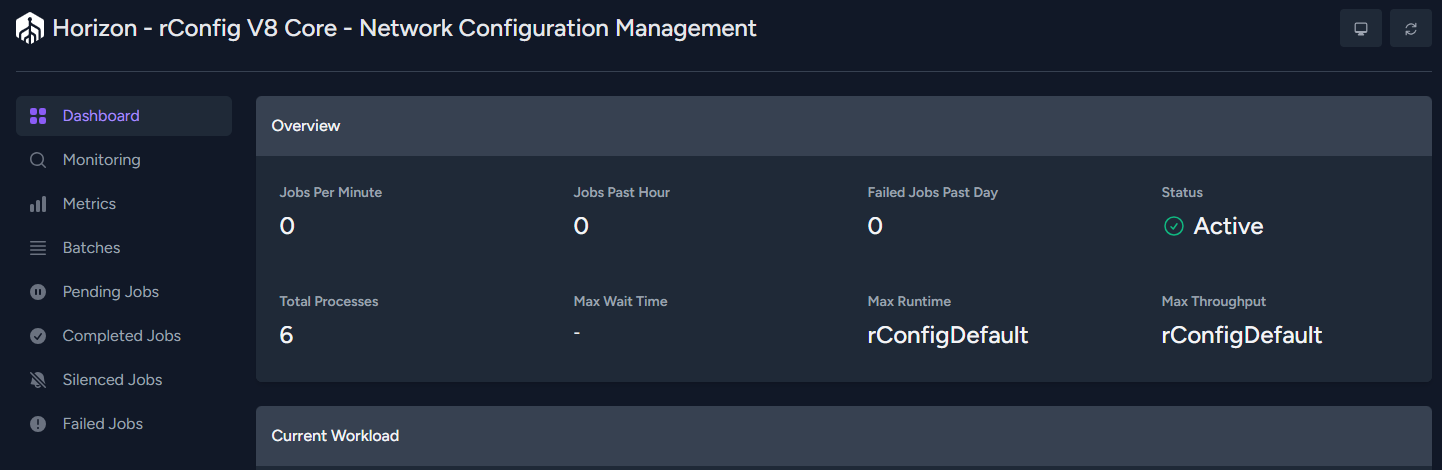

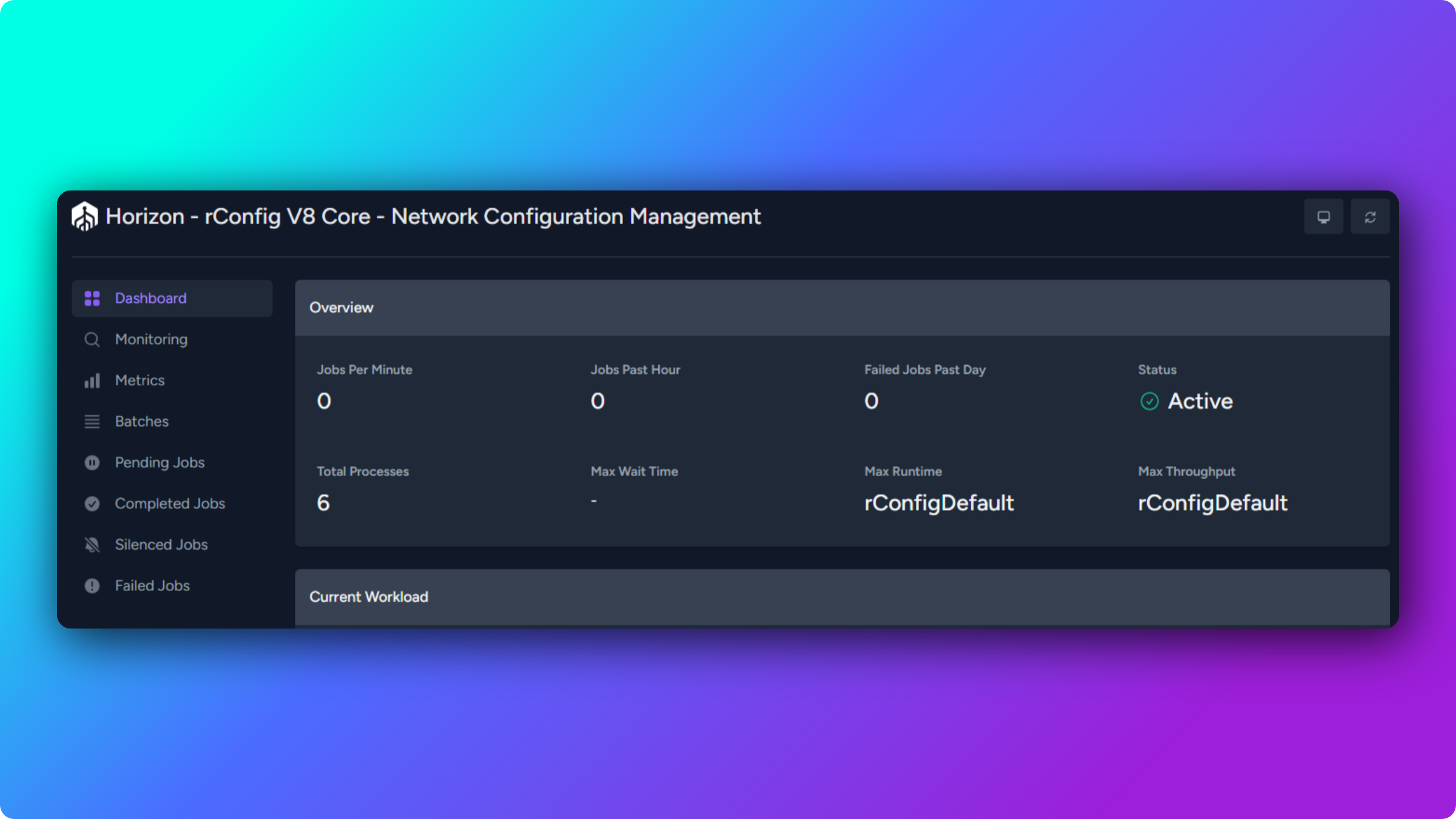

Dashboard

A high-level overview of queue system health. Key metrics:

• Jobs Per Minute: current processing rate across all queues. Higher means active work (backups or tasks running); lower means an idle period or a bottleneck.
• Processes: number of active worker processes. This should match the worker count configured in Supervisor. A much lower number suggests crashed workers.
• Jobs Past Hour: total job volume over the last 60 minutes, showing workload trends and peaks.
• Failed Jobs: count of jobs that errored. Occasional failures are normal (device timeouts, connectivity); a high rate points to a systemic problem.
• Job Status Distribution: a breakdown of pending, processing, completed, and failed jobs.
• Horizon Status: whether Horizon is actively running and processing jobs.
• Recent Jobs: the most recently processed jobs with execution time, status, and queue name.

Auto reload

The dashboard has an auto-reload toggle in the top right. Enable it to refresh metrics automatically and see real-time queue updates without reloading the page.

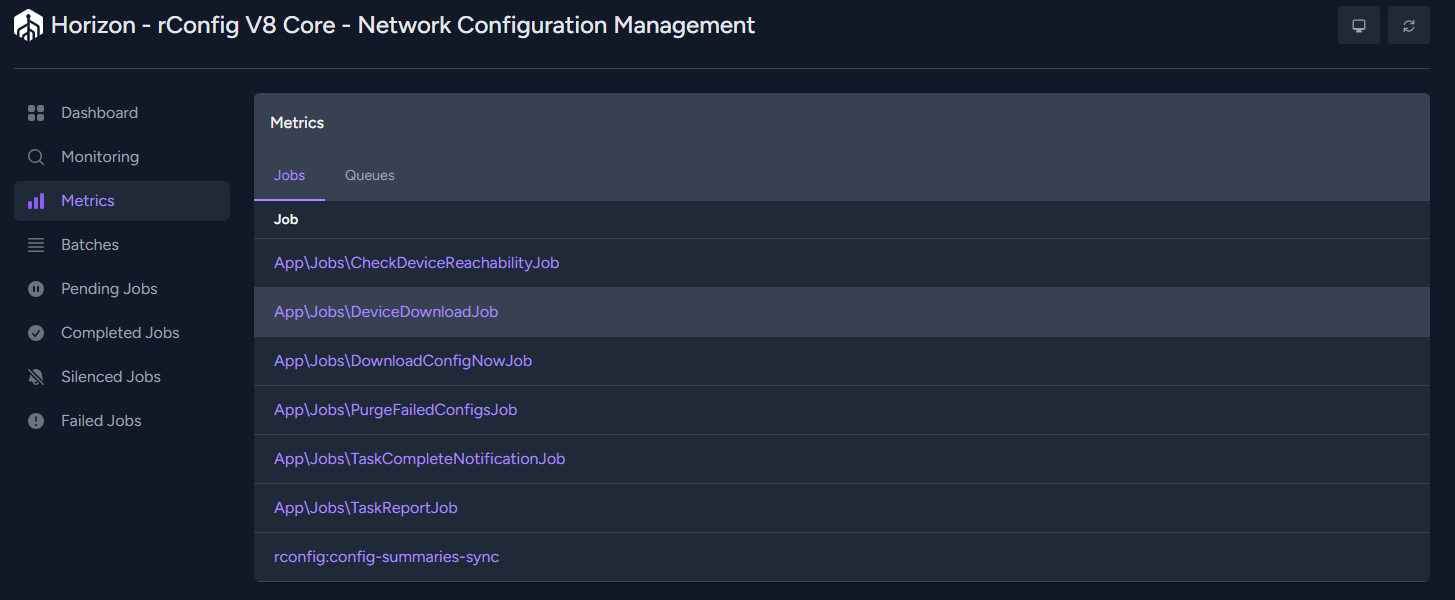

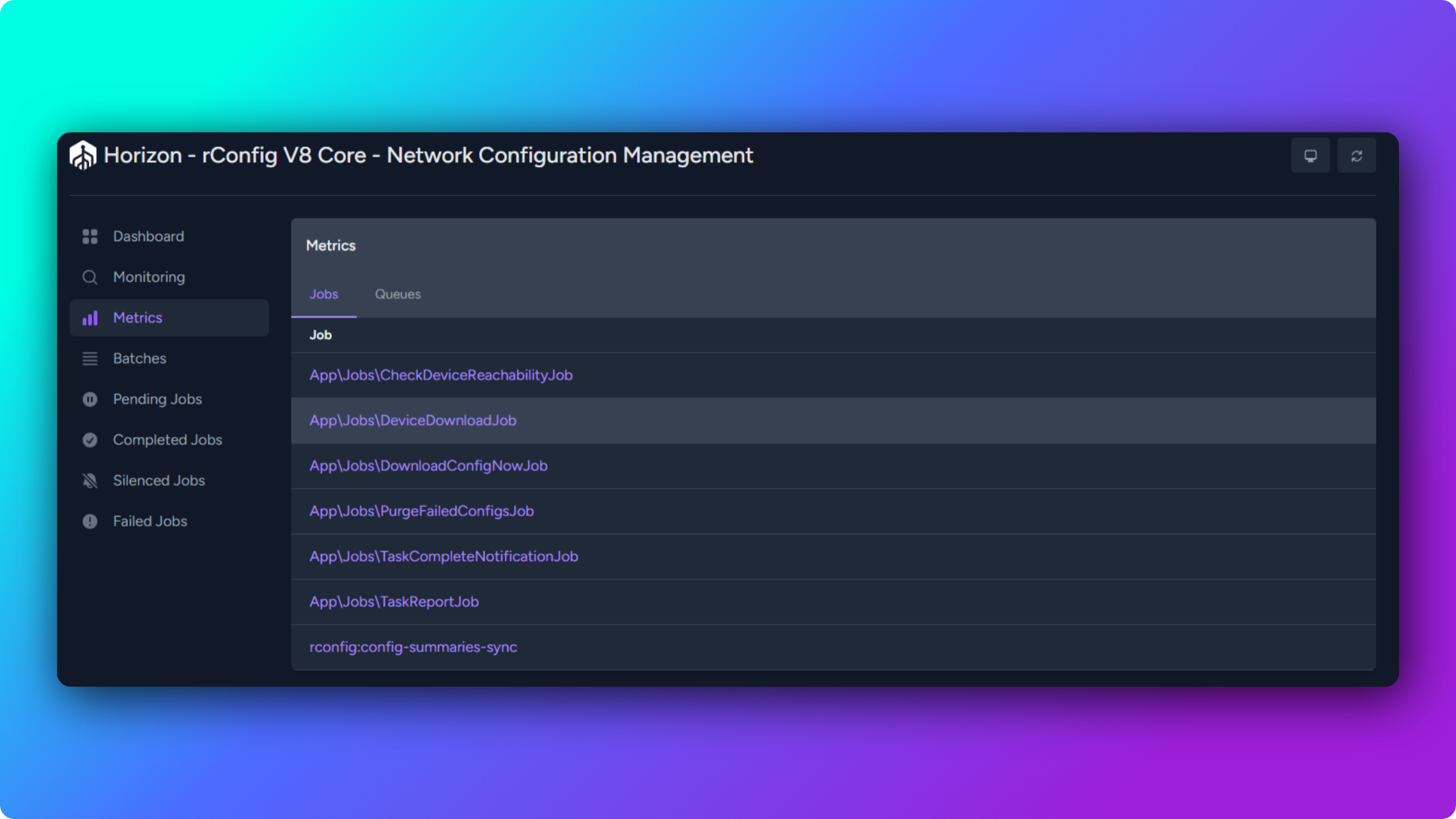

Metrics

Historical performance data for the queue system. Available metrics:

• Jobs Processed: total job volume over the selected period, showing workload trends and peak usage.
• Throughput: jobs processed per time unit, indicating processing capacity.
• Runtime Analysis: execution time statistics that help identify slow operations.
• Jobs Failed: failure trends, showing when issues started and whether they are increasing.
• Jobs Per Minute: processing rate over time, useful for capacity planning.
• Average Wait Time: how long jobs wait before processing. High values indicate insufficient worker capacity or a backlog.
• Average Execution Time: how long jobs take to complete. Rising values may indicate performance degradation.
• Time Range Options: view the past hour, 24 hours, 7 days, or a custom range.

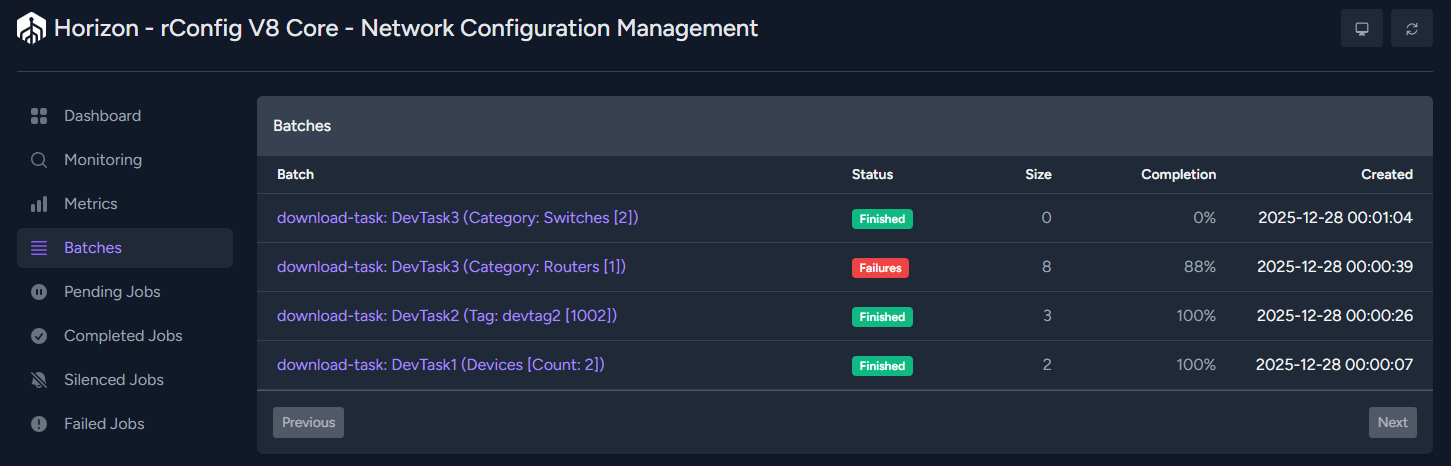

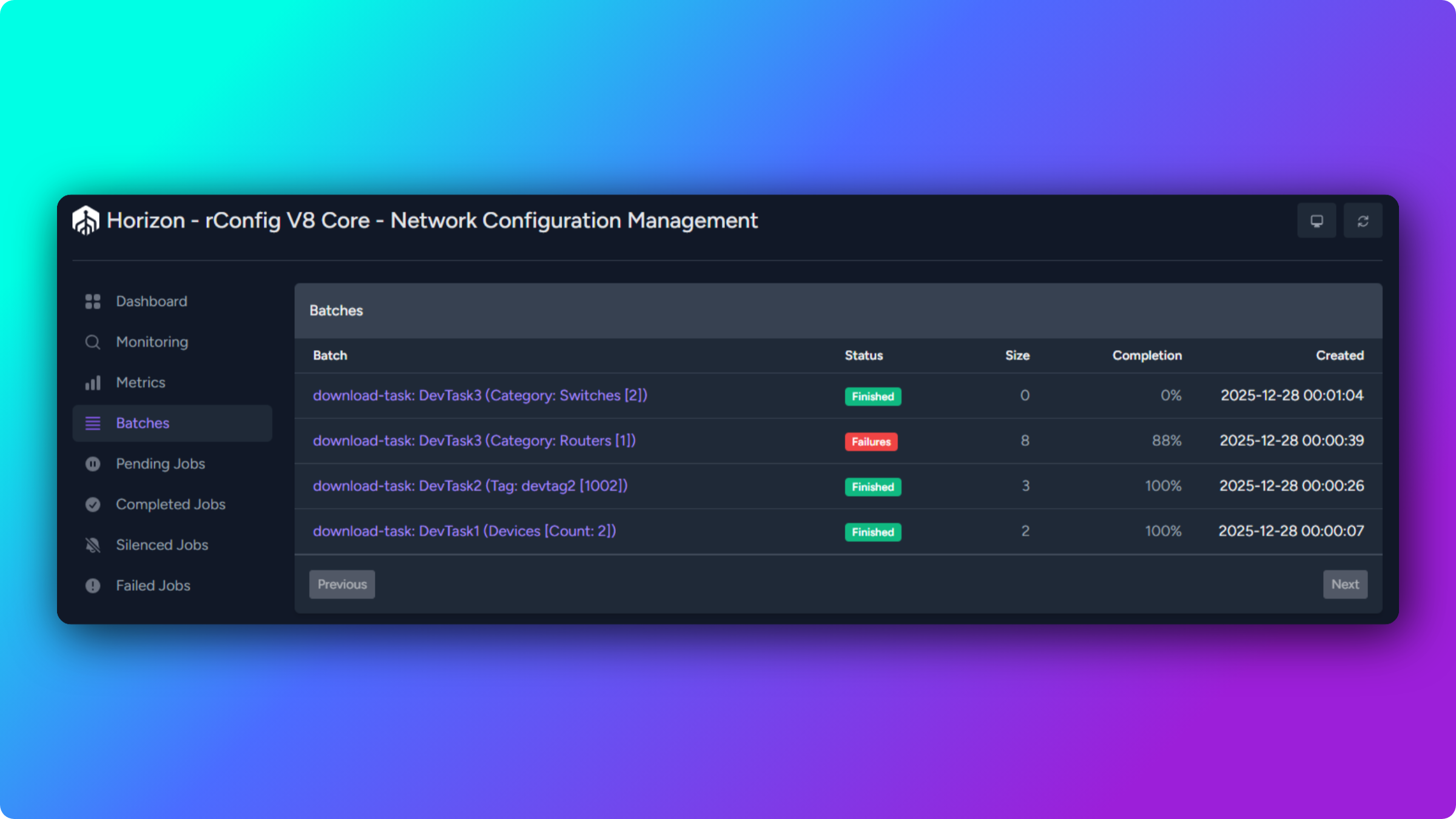

Batches

Monitor batch job processing. The view shows:

• Batch ID and creation timestamp.
• Total jobs in the batch.
• Jobs completed, pending, and failed.
• Overall batch progress percentage.
• Individual job status within the batch.
• Batch completion status.

Batches give non-blocking execution, granular troubleshooting (identify the specific failed device), real-time progress, and parallel processing. They cover all scheduled device downloads and manual multi-device downloads.

Pending Jobs

Jobs waiting to be picked up by a worker. The view shows the job type and class name, queue name and priority, wait time, and job payload.

A short-lived pending state during active processing is normal. Jobs that stay pending for extended periods point to worker capacity or processing problems.

Completed Jobs

A history of successfully executed jobs, showing the completion timestamp, execution duration, queue name, and payload. This history is cleared on a system restart or rConfig update.

Failed Jobs

A dedicated view for jobs that errored during execution. It shows the exception type and message, the full stack trace, the job payload, the failure timestamp, the queue name and connection, and the number of retry attempts.

Available actions: Retry a single job, Retry All failed jobs, Forget a job (remove it from the list without fixing the cause), and Forget All.

Tip

Investigate and resolve the root cause before retrying. Retrying jobs that failed because of configuration errors or connectivity problems will only fail again.

Caution

Review any failed jobs and, if you cannot resolve them, report them to rConfig Support. The Failed Jobs section should normally be empty.

Job types in rConfig

Different job types appear in Horizon, matching rConfig operations.

Job class	Purpose	Typical duration	Common failures
App\Jobs\DeviceBackupJob	Run a configuration download for a device	10 to 60 seconds	Connection timeouts, authentication errors, prompt mismatches
App\Jobs\ScheduledTaskJob	Run scheduled operations (backups, maintenance)	Varies with scope	Task configuration errors, device unavailability
App\Jobs\PurgeDataJob	Clean old configs, logs, and temporary files	Varies with data volume	Disk space issues, database lock contention

Reading job status

• Pending: queued but not yet picked up. Normal with a backlog; concerning if it persists, which points to worker issues.
• Processing: a worker is executing the job. It should move to completed or failed within a reasonable time for that job type.
• Completed: finished successfully. Review the execution time if it looks abnormally long.
• Failed: errored during execution. Review the exception details for the cause.
• Retrying: a failed job re-queued for another attempt. Watch whether the retry succeeds.

Supervisor configuration

Supervisor manages the Horizon process, keeping it running and restarting it if it crashes. Without Supervisor running Horizon, all background jobs stop: scheduled tasks do not execute, backups do not run, and the queue fills with pending jobs.

Supervisor is a process control system for Linux and Unix that starts Horizon at boot, monitors its health, restarts it if it exits, logs startup and errors, and manages worker processes.

Configuration differs slightly between distributions but follows the same principles.

CentOS / RHEL / Rocky / Alma

Configuration file location:

/etc/supervisord.d/horizon.ini

Configuration file contents:

[program:horizon]
; Horizon rConfig Configuration
process_name=%(program_name)s_%(process_num)02d
command=php /var/www/html/rconfig/artisan horizon
autostart=true
autorestart=true
user=root
redirect_stderr=true
stdout_logfile=/var/www/html/rconfig/storage/logs/horizon.log
stopwaitsecs=3600

Key directives:

• command: path to the Horizon artisan command.
• autostart: start Horizon when Supervisor starts.
• autorestart: restart Horizon if it exits.
• user: the system user that runs the process.
• stdout_logfile: where Horizon logs are written.
• stopwaitsecs: grace period before the process is killed (3600 seconds, to allow long-running jobs to finish).

Manage Supervisor:

# Check Supervisor status
systemctl status supervisord

# Start Supervisor
systemctl start supervisord

# Enable Supervisor to start on boot
systemctl enable supervisord

# Restart Supervisor
systemctl restart supervisord

Manage Horizon through Supervisor:

# Check Horizon worker status
supervisorctl status horizon

# Start Horizon worker
supervisorctl start horizon:*

# Stop Horizon worker
supervisorctl stop horizon:*

# Restart Horizon worker
supervisorctl restart horizon:*

# Reload Supervisor configuration
supervisorctl reread
supervisorctl update

Supervisor logs:

/var/log/supervisor/supervisord.log

Ubuntu / Debian

Configuration file location:

/etc/supervisor/conf.d/horizon_supervisor.ini

Configuration file contents:

[program:horizon]
; Horizon rConfig Configuration
process_name=%(program_name)s_%(process_num)02d
command=php /var/www/html/rconfig/artisan horizon
autostart=true
autorestart=true
user=root
redirect_stderr=true
stdout_logfile=/var/www/html/rconfig/storage/logs/horizon.log
stopwaitsecs=3600

Key directives:

• command: path to the Horizon artisan command.
• autostart: start Horizon when Supervisor starts.
• autorestart: restart Horizon if it exits.
• user: the system user that runs the process.
• stdout_logfile: where Horizon logs are written.
• stopwaitsecs: grace period before the process is killed (3600 seconds, to allow long-running jobs to finish).

Manage Supervisor:

# Check Supervisor status
systemctl status supervisor

# Start Supervisor
systemctl start supervisor

# Enable Supervisor to start on boot
systemctl enable supervisor

# Restart Supervisor
systemctl restart supervisor

Manage Horizon through Supervisor:

# Check Horizon worker status
supervisorctl status horizon

# Start Horizon worker
supervisorctl start horizon:*

# Stop Horizon worker
supervisorctl stop horizon:*

# Restart Horizon worker
supervisorctl restart horizon:*

# Reload Supervisor configuration
supervisorctl reread
supervisorctl update

Supervisor logs:

/var/log/supervisor/supervisord.log

Configuring Horizon with environment variables

Horizon’s behaviour is controlled by environment variables in the .env file at /var/www/html/rconfig/.env. These settings control worker processes, timeouts, and retry behaviour.

HORIZON_PROD_TIMEOUT=60
HORIZON_MIN_PROCESS=1
HORIZON_MAX_PROCESS=10
HORIZON_DEFAULT_MAX_PROCESS=5
REDIS_QUEUE_RETRY_AFTER=130

• HORIZON_PROD_TIMEOUT: seconds a job may run before it is terminated as a timeout. Default 60. Increase for long-running jobs (large backups). Must be lower than REDIS_QUEUE_RETRY_AFTER.
• HORIZON_MIN_PROCESS: minimum worker processes Horizon keeps running, applied to all queues. Default 1. Ensures baseline capacity is always available.
• HORIZON_MAX_PROCESS: maximum worker processes, applied to HighPriorityQueue, ManualDownloadQueue, TaskDownloadQueue, and TaskSnippetQueue. Default 10. Scales workers up during high load.
• HORIZON_DEFAULT_MAX_PROCESS: maximum worker processes for the default-priority queues PolicyCompliance, SnmpTrapQueue, PurgeDataJobs, and rConfigDefault. Default 5.
• REDIS_QUEUE_RETRY_AFTER: seconds to wait before retrying a job. Default 130. Must be greater than HORIZON_PROD_TIMEOUT to prevent the same job being processed twice.

Applying changes

Edit the .env file:

nano /var/www/html/rconfig/.env

After saving, clear the application cache:

cd /var/www/html/rconfig
php artisan rconfig:clear-all

Then restart Horizon. Supervisor restarts it automatically:

php artisan rconfig:clear-horizon

Caution

Increasing the timeout and worker count consumes more server resources and usually means raising the PHP memory limit as well. Each extra process or longer timeout uses more CPU, memory, and database connections, so monitor carefully. See the PHP settings reference for guidance on the PHP memory limit.

Things to check before scaling

• Timeout and retry: if you raise HORIZON_PROD_TIMEOUT, raise REDIS_QUEUE_RETRY_AFTER above it (at least timeout plus 30 seconds) to avoid duplicate processing.
• Database connections: when raising HORIZON_MAX_PROCESS, check the database server’s maximum allowed connections. Each worker can use a connection. Monitor with SHOW STATUS LIKE 'Threads_connected';.
• Resource planning: more workers means more CPU, memory, and database connections. Balance worker count against available resources and watch performance as you scale.

Troubleshooting Horizon issues

Why is Horizon showing as inactive?

The dashboard shows “Inactive”, or jobs queue but never process.

Diagnose:

1. Check Horizon status:

   php artisan horizon:status

   Expected: Horizon is running. If it reports inactive, Horizon is not running.

2. Check the worker through Supervisor:

   supervisorctl status horizon

   Expected: horizon RUNNING pid 12345, uptime 1:23:45. A STOPPED, FATAL, or EXITED status means Supervisor is not running Horizon.

3. Check Supervisor itself:

   # CentOS / RHEL / Rocky / Alma
   systemctl status supervisord

   # Ubuntu / Debian
   systemctl status supervisor

Resolve:

# 1. Ensure Supervisor is running (CentOS / RHEL / Rocky / Alma)
systemctl start supervisord
systemctl enable supervisord

# Ubuntu / Debian
systemctl start supervisor
systemctl enable supervisor

# 2. Reload Supervisor configuration
supervisorctl reread
supervisorctl update

# 3. Start the Horizon worker
supervisorctl start horizon:*

# 4. Verify Horizon is running
php artisan horizon:status

Then open External Tools → System Queue Manager and confirm the dashboard shows an active status with processing metrics.

Caution

If Horizon still will not start, check the Horizon log for specific errors at /var/www/html/rconfig/storage/logs/horizon.log.

Why is Supervisor not starting Horizon?

Supervisor shows FATAL or EXITED for horizon.

Check the logs:

tail -n 50 /var/log/supervisor/supervisord.log
tail -n 50 /var/www/html/rconfig/storage/logs/horizon.log

Common causes:

• Incorrect file paths in the config: verify the artisan and PHP paths.

  ls -la /var/www/html/rconfig/artisan
  which php

  Correct the Supervisor config if needed, then supervisorctl reread && supervisorctl update && supervisorctl start horizon:*.

• Permission issues: the rConfig directory must be owned by the web server user.

  # CentOS / RHEL / Rocky / Alma
  chown -R nginx:nginx /var/www/html/rconfig/

  # Ubuntu / Debian
  chown -R www-data:www-data /var/www/html/rconfig/

• PHP memory limit too low: review the PHP settings reference to set optimal PHP values.

Why are jobs stuck in pending?

Jobs queue but never process, staying in “Pending” indefinitely.

Check whether workers are processing:

php artisan horizon:status

In the dashboard, check the Processes count. It should match the workers configured in Supervisor plus any extra workers up to the maximum.

Resolve:

• Horizon running but no active workers: restart it.

  php artisan rconfig:clear-horizon
  # Supervisor restarts it automatically
  supervisorctl start horizon:*

• Workers active but jobs still pending: this is usually queue priority. Jobs in higher-priority queues run first, so lower-priority jobs wait while a high-priority queue is busy.

• Consistent backlog: raise the worker count in .env, then clear and restart.

  # In /var/www/html/rconfig/.env
  HORIZON_MAX_PROCESS=15
  HORIZON_DEFAULT_MAX_PROCESS=8

  php artisan rconfig:clear-all
  php artisan rconfig:clear-horizon

Caution

More workers use more CPU, memory, and database connections. Monitor resources when increasing the worker count and confirm the database max_connections is adequate. Contact rConfig Support if unsure.

Why are jobs failing repeatedly?

A high failure rate, with many jobs in the Failed Jobs section.

Open Failed Jobs in the dashboard, click a recent failure, and review the exception message and stack trace to find common patterns.

Failure pattern	Example exception	Resolution
Device connectivity	Connection timeout, SSH connection refused	Verify reachability, credentials, and firewall rules before retrying
Authentication	Authentication failed, invalid credentials	Update the device credentials, then retry
Configuration	Command not found, invalid regex pattern	Fix the command configuration, then retry
Resource exhaustion	Out of memory, maximum execution time exceeded	Increase the PHP memory limit or reduce concurrent jobs

After resolving the root cause, retry the jobs with Retry All, or retry individually after fixing specific issues.

Why is Horizon consuming excessive resources?

High CPU or memory use by the Horizon process, causing system slowdown.

Check usage:

ps aux | grep horizon
top -p $(pgrep -f horizon)

Common causes:

• Too many concurrent workers: reduce the maximums in .env, then clear and restart.

  # In /var/www/html/rconfig/.env
  HORIZON_MAX_PROCESS=5
  HORIZON_DEFAULT_MAX_PROCESS=3

  php artisan rconfig:clear-all
  php artisan rconfig:clear-horizon

• Large payloads or memory growth: restart Horizon to clear memory, and schedule a regular restart.

  # Restart Horizon daily at 3 AM (crontab)
  0 3 * * * cd /var/www/html/rconfig && php artisan rconfig:clear-horizon

• Inefficient jobs: review execution times in Metrics. Jobs over 5 minutes may need a smaller scope (fewer devices per job) or leaner command sets.

Why is the Horizon dashboard inaccessible?

A 404 or blank page at /horizon.

Clear the application cache:

cd /var/www/html/rconfig
php artisan config:clear
php artisan route:clear
php artisan view:clear
php artisan cache:clear

Verify Horizon is published:

php artisan horizon:install

Confirm the web server is serving rConfig and the routes are reachable, then restart services:

systemctl restart nginx php-fpm  # Nginx
systemctl restart httpd php-fpm  # Apache

Best practices

Monitoring

• Review the dashboard daily for failed jobs, unusual processing times, or growing queue depths.
• Track CPU, memory, and disk usage to confirm capacity for queue processing.
• Configure external alerting (Nagios, Zabbix, and similar) to fire when Horizon becomes inactive, failed jobs exceed a threshold, queue depth grows continuously, or worker processes stop.
• Review batch completion rates to spot systematic issues with specific device groups.

Maintenance

• Restart Horizon after every rConfig update so it picks up new code.

  php artisan rconfig:clear-horizon

• After resolving issues, clear old failed jobs so the interface stays clean. Retry the ones that may now succeed and forget the rest.

• Review Metrics weekly. Rising average execution times, increasing failure rates, and high wait times all signal problems developing.

Capacity planning

• Baseline normal job volume and execution times so you can tell when capacity needs to grow.
• Scale workers as device count grows, balanced against system resources (database connections, PHP memory, CPU).
• Stagger scheduled tasks across time to avoid queue spikes overwhelming workers.
• For database connections, the worst case is roughly HORIZON_MAX_PROCESS multiplied by the number of active queues. Ensure the database max_connections covers this plus regular web traffic. The default MySQL value of 151 is often too low for larger deployments.

The values below are starting points. Adjust to actual resources and workload, and scale incrementally.

Small (< 100 devices)

HORIZON_MIN_PROCESS=1
HORIZON_MAX_PROCESS=5
HORIZON_DEFAULT_MAX_PROCESS=3
PHP memory_limit=256M
MySQL max_connections=151 (default)

Medium (100 to 500 devices)

HORIZON_MIN_PROCESS=1
HORIZON_MAX_PROCESS=10
HORIZON_DEFAULT_MAX_PROCESS=5
PHP memory_limit=512M
MySQL max_connections=300

Large (500+ devices)

HORIZON_MIN_PROCESS=2
HORIZON_MAX_PROCESS=15
HORIZON_DEFAULT_MAX_PROCESS=8
PHP memory_limit=1024M
MySQL max_connections=500

Quick reference

Common commands

# Check Horizon status
php artisan horizon:status

# Terminate Horizon gracefully (Supervisor restarts it)
php artisan rconfig:clear-horizon

# Pause Horizon (stop processing new jobs)
php artisan horizon:pause

# Continue Horizon (resume processing)
php artisan horizon:continue

# Clear all caches after .env changes
php artisan rconfig:clear-all

# Supervisor: status, start, restart the worker
supervisorctl status horizon
supervisorctl start horizon:*
supervisorctl restart horizon:*

# Tail the logs
tail -f /var/www/html/rconfig/storage/logs/horizon.log
tail -f /var/log/supervisor/supervisord.log

Queue priority order

1. HighPriorityQueue (critical jobs)
2. ManualDownloadQueue (user-triggered downloads)
3. TaskDownloadQueue (scheduled downloads)
4. TaskSnippetQueue (snippet deployment, Pro and above)
5. PolicyCompliance (compliance checks, Pro and above)
6. SnmpTrapQueue (SNMP trap processing)
7. PurgeDataJobs (data cleanup)
8. rConfigDefault (general system jobs)
9. default (fallback, rarely used)

Supervisor locations

Item	CentOS / RHEL / Rocky / Alma	Ubuntu / Debian
Config	/etc/supervisord.d/horizon.ini	/etc/supervisor/conf.d/horizon_supervisor.ini
Logs	/var/log/supervisor/supervisord.log	/var/log/supervisor/supervisord.log
Service	supervisord	supervisor
Web server user	nginx	www-data

Common issues and quick fixes

Issue	Quick fix
Horizon inactive	supervisorctl start horizon:*
Jobs stuck pending	php artisan rconfig:clear-horizon
Failed jobs piling up	Review the failure details, fix the root cause, then retry
High memory usage	Reduce HORIZON_MAX_PROCESS in .env
Dashboard inaccessible	php artisan config:clear && systemctl restart nginx
After .env changes	php artisan rconfig:clear-all && php artisan rconfig:clear-horizon
Worker not starting	Check Supervisor logs, verify paths and permissions

What’s next

• Set up scheduled tasks to configure the automated operations Horizon processes.
• Run configuration backups to understand the device backup jobs that flow through the queues.
• Review the application log for context beyond the Horizon dashboard.
